PEEK – Excellent performance over the measuring range
PEEK Polymerisation | Compounding | Extrusion | Druckform

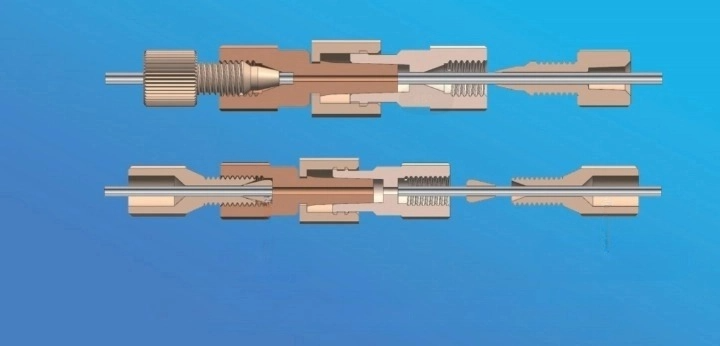

PEEK Luer fitting
> Suitable for quick disassembly and assembly, and can be used repeatedly.
> Corrosion-resistant, high-purity, high-strength, low-dissolution PEEK material, formed by machining.
> A syringe can also be connected for manual injection.
> A variety of specifications are available, and can also be customized.
Do you want more help?

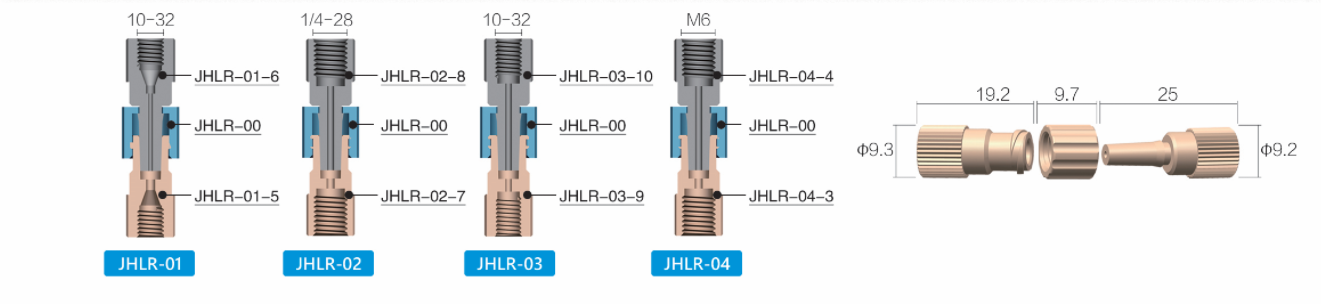

| No. | Internal threadat both ends | Suitable tubing (mm) | Pressureresistance value | Formingmethod | Material/color | Ferrule sleeve material |
|---|---|---|---|---|---|---|
| JHLR - 01 | 10-32 Cone bottom | 1/16' (1.6) | 20 MPa | Machined / injection | PEEK / Natural | m=0.8 Knurled |
| JHLR - 02 | 1/4 - 28 Flat bottom | 1/16' (1.6)71/8' (3.2) | 20 MPa | Machined / injection | PEEK / Natural | m=0.8 Knurled |
| JHLR - 03 | 10-32 Flat bottom | 1/16' (1.6) | 20 MPa | Machined /injection | PEEK / Natural | m=0.8 Knurled |
| JHLR - 04 | M6 Flat bottom | 1/16' (1.6/1/8" (3.2) | 20 MPa | Bearbeitet / Einspritzung | PEEK / Natural | m=0.8 Knurled |
PEEK – Excellent Performance Across Test & Measurement
Why PEEK is used on analytical instruments instead of stainless steel components?
It is that not only these components must be chemically resistant, but also be made of ultra-pure material to ensure that it does not affect the analytical results, PEEK have all these excellent material proprties. In addition, the high abrasion resistance of peek prevents deformation or breakage of the components, making them more durable and cost-efficient.
PEEK enables high-precision injection moulded and CNS parts metering with minimum pressure loss, and precision moulding and durability in applications such as ultra-high pressure liquid chromatography, deliver fabrication and end-use efficiencies in laboratory analytical equipment.
Explore PEEK Parts Benefits
PEEK5600G
✱ 100% virgin peek
✱ Higher tenacity than other kind of PEEK
✱ High purity
✱ High temperature resistance
✱ Excellent dielectric strength
PEEK5600CF30
✱ 30% carbon fiber filled PEEK
✱ Better mechanical performance than other kind of PEEK
✱ Tensile strength up to 210 MPa
✱ Better wearing resistance
✱ 5,3 Times thermal conductivity
PEEK5600LF30
✱ 10% Carbon fiber,10% Graphite,10% PTFE filled PEEK
✱ HPV bearing grade PEEK
✱ High wearing resistance
✱ Low friction coefficient
✱ Low noise
PEEK5600GF30
✱ 30% glass fiber filled PEEK
✱ Better performance on rigidness,anti-creep ,more stable dimension
✱ Compressive strength up to 215MPa
Explore Our PEEK-type Instruments
Our High purity, corrosion resistant and low dissolution PEEK material has been widely used in analytical chromatography equipment, preparative and semi-preparative chromatography equipment, protein purification equipment, IVD equipment, sample pretreatment equipment, pharmaceutical and environmental monitoring equipment and other related equipment.
More then 1000+ related products manufactured by JUNDE are well recognized and selected by our clients of analytical instrument.
Typical product: PEEK Fitting, PEEK Union, PEEK Connector, PEEK plug, PEEK Chromatographic column, PEEK filtering column, PEEK digesting vessel, PEEK tubing, PEEK sampling needle...more details please check below our brochure.
PEEK5600 -Serie Vorteile
Kleines spezifisches GewichtSchwerkraft ersetzt die Titanlegierung (4,5 g/cm3) und Aluminiumlegierung (4,5 g/cm3), um ein leichtes Gewicht zu erreichen.
Hoher Versch-leißfestigkeitDer Schmelzpunkt beträgt 343 ° C, die Langzeitanwendung bei 260 ° C, die thermische Verformungstemperatur des Verbundmaterials etwa 330 ° C und einen höheren Temperaturwiderstand.
Hohe FestigkeitDie mechanischen Eigenschaften von PEEK, die durch gehackte Fasern modifiziert wurden, sind etwas niedriger als die von Aluminiumlegierungen.
Korrosionsbes-tändigkeitEs hat Korrosionsresistenz gegen die meisten organischen Lösungsmittel wie Säuren und Alkalien. Es wird durch Halogene und starke Säuren bei hohen Temperaturen korrodiert und in konzentrierter Schwefelsäure bei Raumtemperatur löslich.
Thermoplastisches MaterialErmüdungsbeständigkeit und Schlagfestigkeit sind signifikant besser als Thermoset -Materialien, haben eine längere Lebensdauer, sind umweltfreundlich und recycelbar.
MaterialstabilitätEs spiegelt besser die Eigenschaften einer niedrigen Gasfreisetzung im Weltraum und einer Vakuumbeschichtungsumgebung wider.
VerschleißfestigkeitHohe Härte und geringer Reibungskoeffizient.
Stabile DimensionPEEK reduziert den Expansionskoeffizienten und verringert damit das Schwellungsrisiko radikal.
We will be in very short time to give you a satisfactory answer.
PEEK-type Instruments Case Study
It is that not only these components must be chemically resistant, but also be made of ultra-pure material to ensure that it does not affect the analytical results, PEEK have all these excellent material proprties. In addition, the high abrasion resistance of peek prevents deformation or breakage of the components, making them more durable and cost-efficient.
PEEK enables high-precision injection moulded and CNS parts metering with minimum pressure loss, and precision moulding and durability in applications such as ultra-high pressure liquid chromatography, deliver fabrication and end-use efficiencies in laboratory analytical equipment.
Product Processing and Quality Control Capability
Cool Jet dry ice deburring equipment
lmprove the quality of machined parts
Non-dastuntive cleanina;
Improve product quality and reduce-scrap rate;
No manual removal of burrs and Haps;
No secondary waste;
Faster and more uniform removal of bums and flaps.
Cool jet dry ice deburring equipment
Dry ice cleaning technology is an effective deburring solution for removing burrs and flaps from machined and modeled parts. Including small holes, cross holes,pollution-free, can effectively prevent the pipeline flow reduction or blockage caused by burrs, and no residue.
100,000-level cleaning workshop
Our company has established a 280-square-meter, 100,000-level cleaning workshop and equipped with 100-level cleaning area accordance with GMP requirements.
