PEEK Flood Plug Seals
JUNDE has cooperated with Saudi Arabia, PetroChina, Sinopec, University of Petroleum, Xi’an and other customers to produce PEEK support sealing ring, PEEK front and rear plugs, PEEK insulating ring, PEEK polar plate, PEEK insulating wire, PEEK spacer ring, PEEK retaining ring, PEEK Wear-resistant shaft sleeves and other products.
High-performance plastic parts such as high-temperature wear-resistant bushings, insulating rings, and front and rear plugs made of PEEK and its modified composite materials can replace traditional materials such as copper alloys, stainless steel, PTFE, ordinary engineering plastics, and graphite. Oil logging and production equipment have strict technical requirements for parts such as wear resistance, high temperature resistance, high strength, oil-free lubrication, acid-base corrosion, and high reliability, which can reduce operating costs and help equipment to continuously operate at the highest production capacity. stable production.
We will be in very short time to give you a satisfactory answer.
Continuous Carbon Fiber CF/PEEK Composite Pipe
- 67% longer service life than steel pipe
- 65% lighter than metal pipes
- More resistant to corrosion by hydrogen sulfide and carbon dioxide than steel pipes
- Long-term use in methanol and 160℃ environment
- Smooth corrosion resistance ensures excellent fluidity
- Replaces corrosion-resistant alloys used in oil and gas industry piping systems

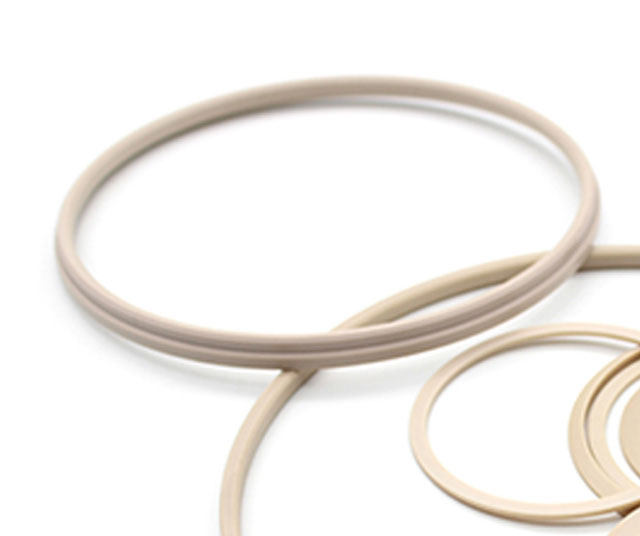

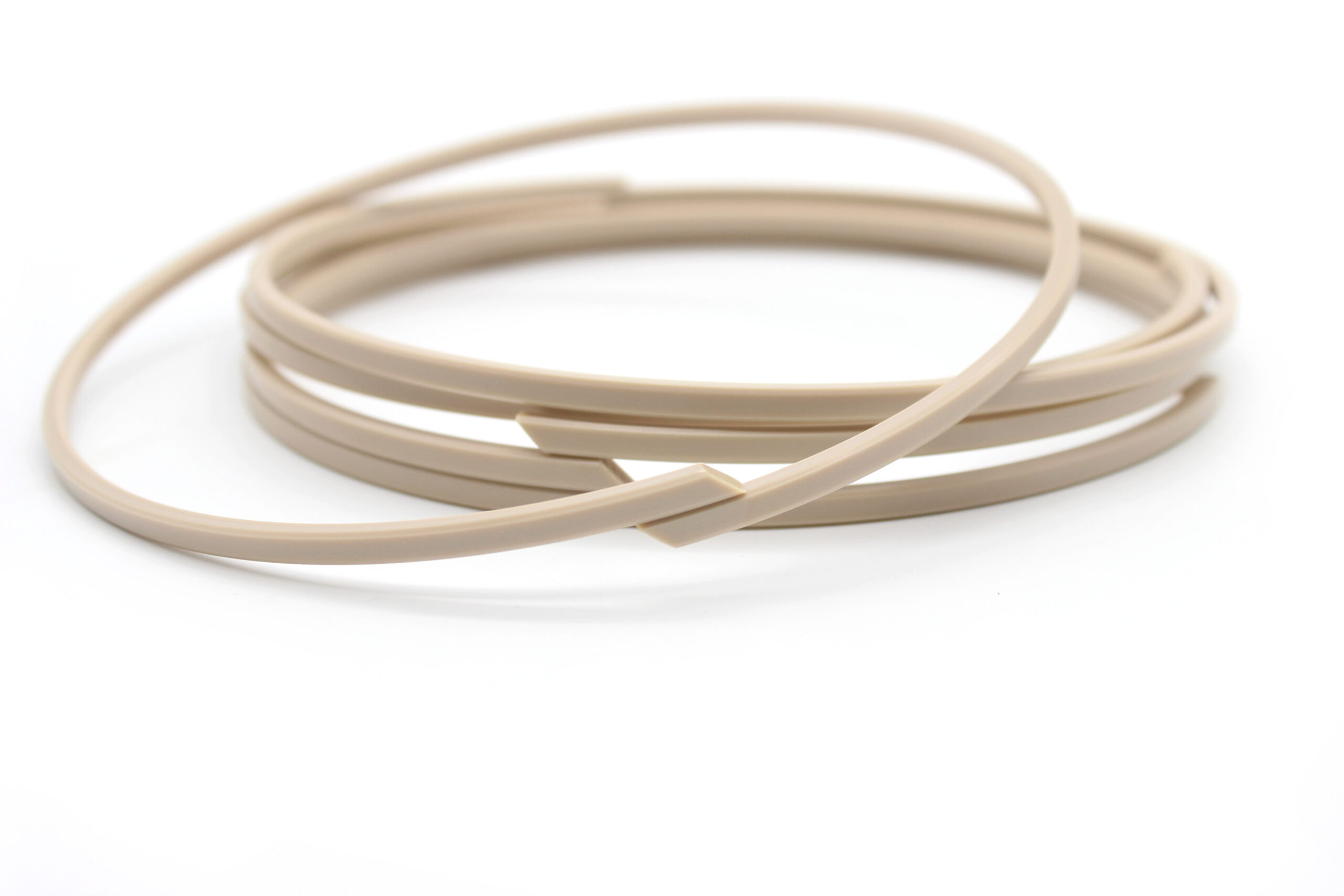

PEEK for sealing: a reliable sealing solution
- In seawater, hydrocarbons, and 100% hydrogen sulfide gas environment, 100% strength retention after 1000 hours at 175°C
- Double the pressure resistance of PTFE
- 300 times higher creep resistance than PTFE
- 18 times more resistant to compression and creep than PTFE
- Replaces metal springs to reduce wear and contact risks with well wall
In oil and gas industry, PEEK provides mechanical support for softer sealing materials and is ideal as a primary seal.
Application of PEEK in ESP electric submersible pump
- Excellent high temperature resistance, excellent insulation even at 250℃
- Maintains high mechanical strength even at 250℃
- High reliability under 200℃ temperature and 140MPa pressure for long periods
- Excellent high temperature resistance and insulation properties
PEEK logging instrument: excellent abrasion resistance and insulation
- High reliability under 200℃ temperature and 140MPa pressure for long periods
- Insulators resist corrosion in underground high temperature and strong acid media (H2S, SO2)
- Unique combination of wear resistance, chemical resistance, mechanical strength, and stable electrical properties
- Maintains data integrity with minimal electrical interference
PEEK wire and cable application: excellent high insulation performance
- Lower water absorption and better toughness than polyimide (PI)
- Excellent cutting and corrosion resistance ensures zero electric short circuit
- Stable chemical corrosion resistance under 200℃ and 100MHz environment
- No need for insulating varnish dipping like PI wrapping wire, reducing cost
PEEK connector application: improve overall performance of downhole connectors
- Two times longer life than glass-ceramic connectors
- Twice the power transmission capacity of glass-ceramic connectors
- Excellent insulation performance ensures no leakage
- Excellent resistance to corrosive liquids and gases
- High purity and strength allows thinner wall sections in compact connectors
- Withstands typical oil and gas industry fluids including seawater, oils, and H2S sour gas
Other Application
- ESP electric submersible pump: insulating ring, insulating wire, thrust wear block, front and rear plugs
- Valve applications: PEEK valve seat, thrust washer, valve stem wear bushing
- Chemical pumps: magnetic pump isolation sleeve, shaft and lock nut, vane pump vanes
- Compressors: piston rings, support rings, valve plates, mushroom bonnets, support pads
