PEEK TUBE

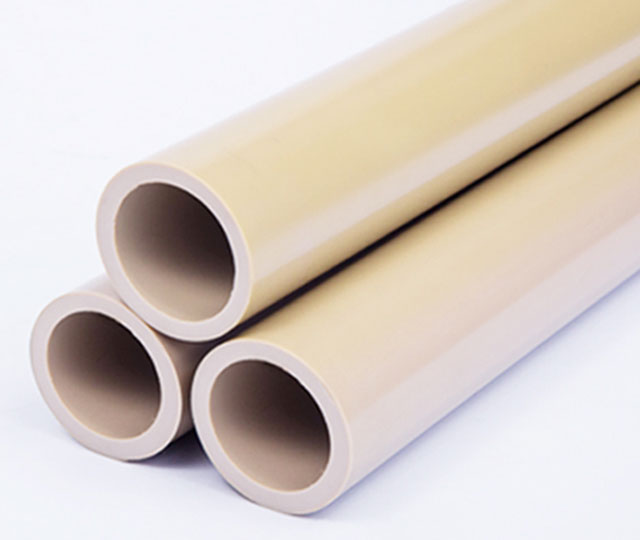

PEEK Tube Product 1

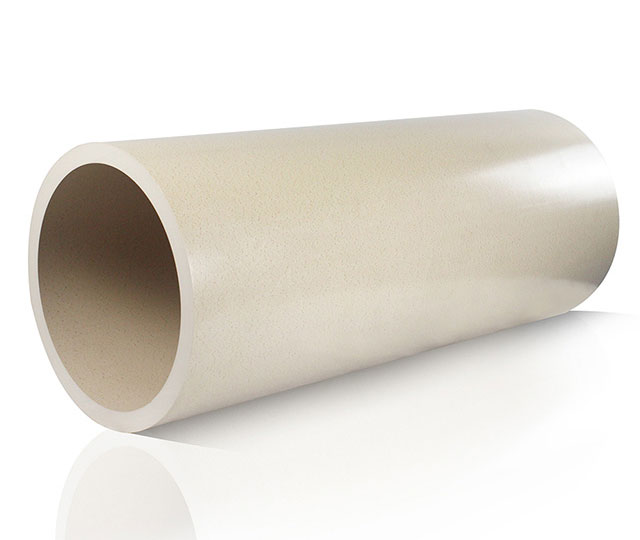

PEEK Tube Product 2

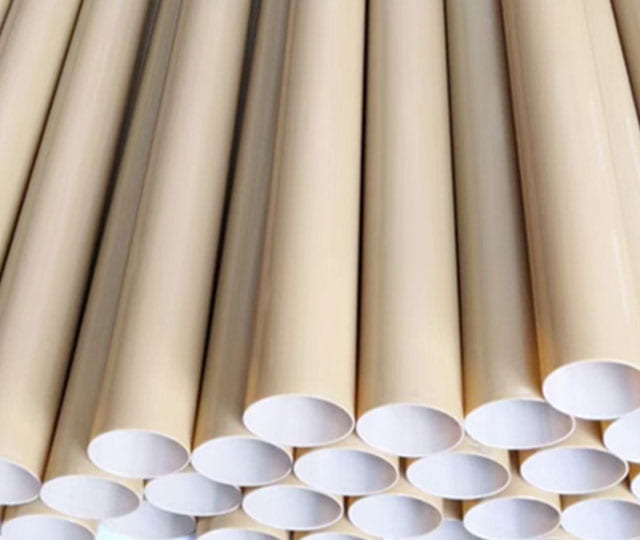

PEEK Tube Product 3

Among all the round PEEK finished part widely used in different industries, nearly half are hollow, which makes PEEK tube a much favorable choice compared with rod especially in the oil and gas, or semiconductor industry.

PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250º C) without permanent property degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments. PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.

Among all the round PEEK finished part widely used in different industries, nearly half are hollow, which makes PEEK tube a much favorable choice compared with rod especially in the oil and gas, or semiconductor industry.

JUNDE specializes in various processing methods to achieve the capability of producing PEEK tubes and rings for a wide range of dimensions. we produce PEEK tubes and rings through extrusion, compression molding, and injection molding. All processes offer a wide range of sizes that can be tailored to the customer’s needs.

With totally over 300 sizes，JUNDE can offer PEEK tube with OD range from 10mm to 1200mm，and we keep ready stock of the over 200 sizes most commonly used PEEK tubes to ensure the fast delivery to our customers around the world.

We will be in a very short time to give you a satisfactory answer.

Do you want more help

Certificate & Compliance

Certificates and Compliance
Do you want more help?

Main Advantages of PEEK Tube

  • Good wearing performance with or without load
  • High service temperature (long term 260℃)
  • Good mechanical strength
  • Good chemical resistance & Hydrosis resistance
  • FDA approved
Do you want more help?

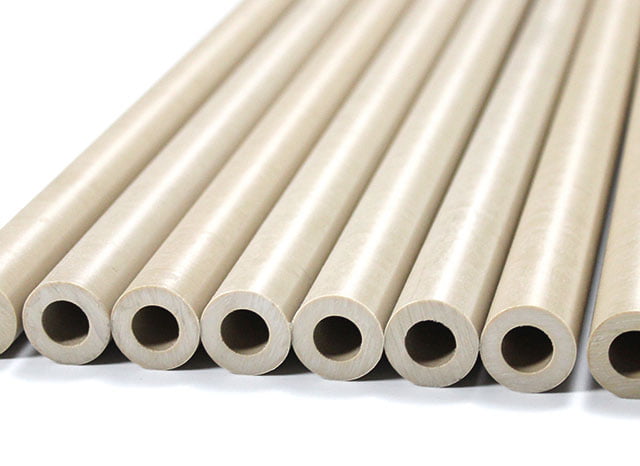

PEEK Tube Advantage 1

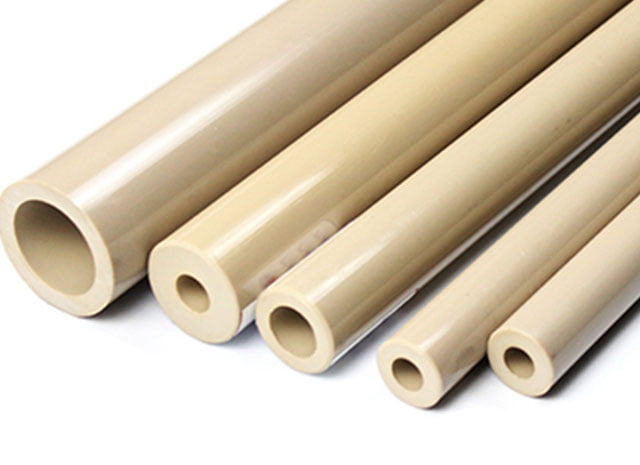

PEEK Tube Advantage 2

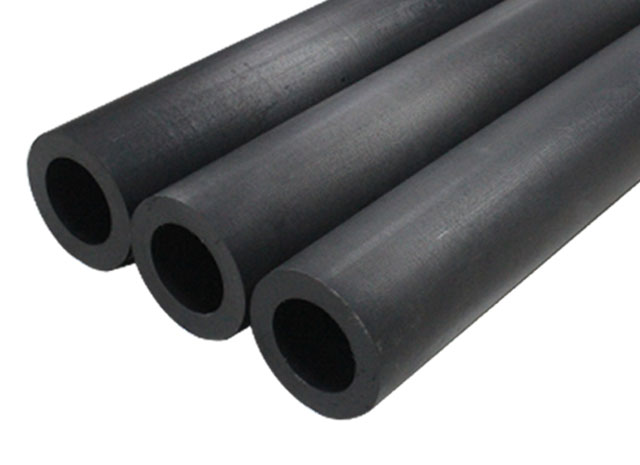

PEEK Tube Advantage 3

PEEK5600G

PEEK5600G

Excellent machinability and …

PEEK5600CF30

PEEK5600CF30

High strength and high modulus, suitable for …

PEEK5600LF30

PEEK5600LF30

Carbon fiber reinforced insights with …

PEEK5600GF30

PEEK5600GF30

With excellent wear resistance…

PEEK Tube Application Industries

Aerospace

Aerospace

Food

Food

Mechanics

Mechanics

Medicine

Medicine

Oil and gas

Oil and gas

Semiconductors

Semiconductors

Do you want more help?

PEEK Tube Typical Data

Item Standard Units PEEK5600G PEEK5600CF30 PEEK5600GF30 PEEK5600LF30
Color – – Natural Black Natural Black
Density ISO 1138 g/cm3 1.3 ± 0.01 1.4 ± 0.03 1.5 ± 0.01 1.44 ± 0.05
Tensile Strength ISO 527 MPa 97 210 120 185
Flexural Modulus ISO 178 GPa 3.6 15.0 6.5 10.5
Do you want more help?

PEEK Tube Typical Data

PEEK5600G PEEK5600CF30 PEEK5600GF30 PEEK5600LF30
Item Standard Units Data Data Data Data
Color – – Natural Black Natural Black
Density ISO 1138 g/cm3 1,3 ± 0,01 1,4±0,03 1,5±0,01 1,44±0,05
Water Absorption (25℃.24Hrs) ISO 62 – 0,05% 0,05% 0,05% 0,05%
Melting temperature ISO 11357 ℃ 343 343 343 343
Distortion Temperature ISO 75-1/-2 ℃ 260 315 315 315
Continuous service Temperature UL 74685 ℃ 260 260 260 260
Thermal expansion coefficient ASTM D696 /K 4,7*10-6 1,5*10-6 2,2*10-6 2,4*10-6
Tensile Strength (23 ℃) ISO 527 Mpa 100 125 110 70
Tensile modulus (23 ℃) ISO 527 Gpa 3,8 9,3 7,9 4
Tensile Elongation (23 ℃) ISO 527 – 27% 2,50% 3,50% 2,50%
Bending Strength (23 ℃) ISO 178 Mpa 163 271 214 100
Bending Modulus (23 ℃) ISO 178 Gpa 3,5 9,1 7,5 4
Impact Strength (23 ℃) ISO 604 Mpa 123 196 142 135
Lzod Impact Strength (No notched) ISO 180/u KJ/m² No Break 38 41 26
Poisson Ratio ISO 527-2 – 0,4 0,35 0,35 0,35
Rockwell Hardness GB3398.2 – 118 123 122 120
Flammability UL 94 (1,5 mm) – V-0 V-0 V-0 V-0
Dielectric strength IEC 60243-1 KV/mm 18 – 17 –
Dielectric constant IEC 60250 – 3,2 – 3,4 –
Thermal Conductivity ISO 22007 W/（m · k） 0,28 0,95 0,31 0,86
Surface Resistance IEC 90093 Ω 10^15 10^5 10^15 10^5
Do you want more help?

PEEK Tube Stock Program

OD(mm) ID(mm) Standard Length(mm)
21 14 1000/3000
23 13 1000/3000
24 17 1000/3000
24 22 1000/3000
26 16 1000/3000
26 19 1000/3000
27 13 1000/3000
28 20 1000/3000
28 27 1000/3000
29 15 1000/3000
31 20 1000/3000
31 24 1000/3000
33 21 1000/3000
33 23 1000/3000
33 25 1000/3000
35 21 1000/3000
36 29 1000/3000
37 29 1000/3000
38 35 1000/3000
39 21 1000/3000
39 26 1000/3000
39 33 1000/3000
41 34 1000/3000
42 33 1000/3000
45 35 1000/3000
46 24 1000/3000
46 36 1000/3000
46 39 1000/3000
48 40 1000/3000
50 27 1000/3000
50 49 1000/3000
51 44 1000/3000
52 30 1000/3000
56 49 1000/3000
58 38 1000/3000
61 32 1000/3000
61 35 1000/3000
61 35 1000/3000
61 38 1000/3000
61 39 1000/3000
61 39 1000/3000
61 54 1000/3000
62 46 1000/3000
64 35 1000/3000
64 39 1000/3000
64 63 1000/3000
66 30 1000/3000
66 35 1000/3000
66 45 1000/3000
66 59 1000/3000
71 49 1000/3000
71 63 1000/3000
72 50 1000/3000
73 41 1000/3000
76 68 1000/3000
78 48 1000/3000
78 55 1000/3000
81 73 1000/3000
82 35 1000/3000
82 50 1000/3000
82 58 1000/3000
85 78 1000/3000
86 53 1000/3000
91 45 1000/3000
91 56 1000/3000
91 70 1000/3000
92 76 1000/3000
92 83 1000/3000
94 70 1000/3000
97 56 1000/3000
97 66 1000/3000
97 81 1000/3000
97 88 1000/3000
102 93 1000/3000
105 75 1000/3000
105 78 1000/3000
105 79 1000/3000
113 43 1000/3000
113 58 1000/3000
113 59 1000/3000
113 70 1000/3000
113 81 1000/3000
113 89 1000/3000
119 59 1000/3000
119 89 1000/3000
120 99 1000/3000
122 93 1000/3000
126 86 1000/3000
126 103 1000/3000
129 98 1000/3000
130 99 1000/3000
134 54 1000/3000
134 71 1000/3000
134 97 1000/3000
134 104 1000/3000
134 109 1000/3000
134 114 1000/3000
135 67 1000/3000
142 74 1000/3000
142 118 1000/3000
144 110 1000/3000
155 120 1000/3000
160 89 1000/3000
160 112 1000/3000
160 130 1000/3000
160 140 1000/3000
171 127 1000/3000
171 150 1000/3000
172 134 1000/3000
184 150 1000/3000
189 134 1000/3000
189 157 1000/3000
192 150 1000/3000
203 122 1000/3000
205 169 1000/3000
205 181 1000/3000
207 174 1000/3000
209 134 1000/3000
214 137 1000/3000
222 141 1000/3000
224 128 1000/3000
224 191 1000/3000
224 195 1000/3000
228 210 1000/3000
237 142 1000/3000
237 145 1000/3000
237 169 1000/3000
239 210 1000/3000
242 219 1000/3000
243 161 1000/3000
249 119 1000/3000
251 177 1000/3000
251 185 1000/3000
255 190 1000/3000
260 214 1000/3000
261 220 1000/3000
266 233 1000/3000
283 201 1000/3000
283 226 1000/3000
284 244 1000/3000
284 248 1000/3000
286 264 1000/3000
289 260 1000/3000
289 267 1000/3000
293 260 1000/3000
293 266 1000/3000
303 235 1000/3000
303 239 1000/3000
305 262 1000/3000
324 277 1000/3000
335 240 1000/3000
335 294 1000/3000
342 239 1000/3000
345 315 1000/3000
362 270 1000/3000
362 288 1000/3000
362 312 1000/3000
376 343 1000/3000
377 277 1000/3000
377 313 1000/3000
413 354 1000/3000
428 392 1000/3000
432 372 1000/3000
453 392 1000/3000
597 447 1000/3000
