PEEK SHEET

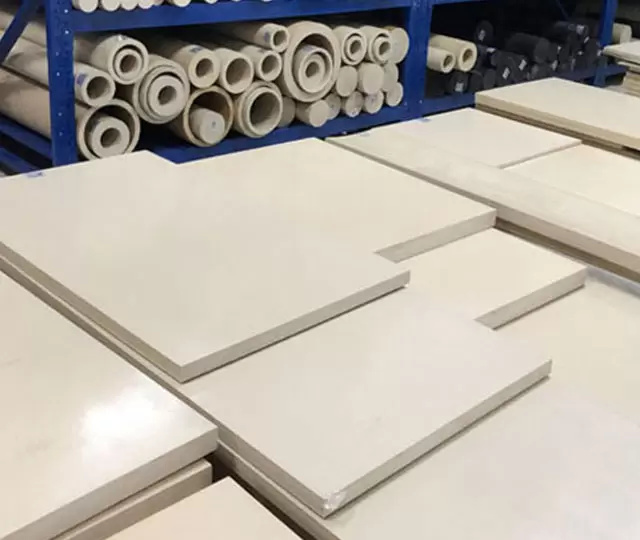

PEEK sheet (plate) is a standard shape that JUNDE produces, PEEK sheet(plate) is widely needed in many industries especially semi-conductor industry.
PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250º C) without permanent property degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments. PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.

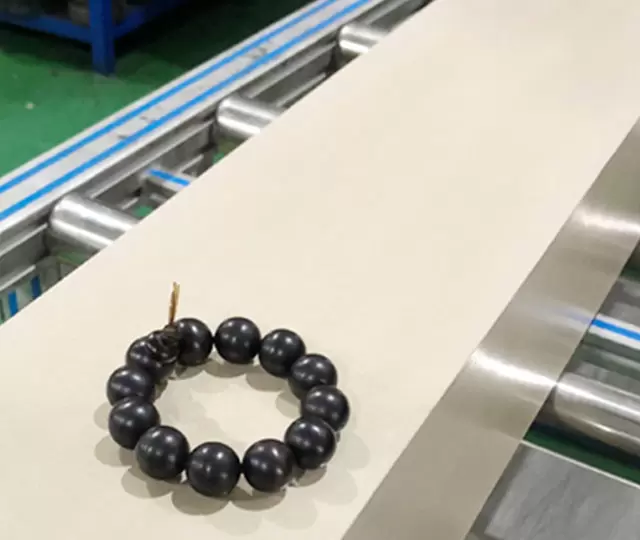

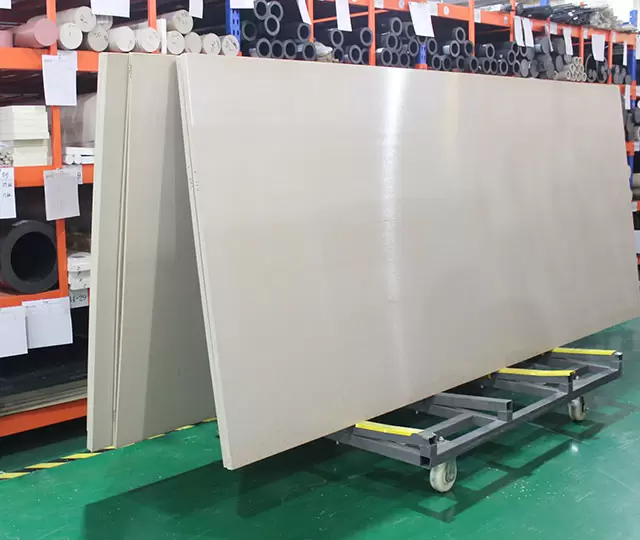

JUNDE produces PEEK sheet (plate) by extrusion or compress molding. Our extruded PEEK sheet (plate) has the biggest width in the world which is 1250mm.
PEEK Natural, PEEK Black, 30% Glass fiber filled PEEK, 30% Carbon fiber filled PEEK, and bearing grade PEEK(10% PTFE,10% Carbon fiber,10% Graphite,70% PEEK), these 5 most widely used grade are also available in PEEK sheets (plates).
We will be in a very short time to give you a satisfactory answer.
Do you want more help
Main Advantages of PEEK Sheet
- Good wearing performance with or without load
- High service temperature (long term 260℃)
- Good mechanical strength
- Good chemical resistance & Hydrosis resistance
- FDA approved
PEEK5600G
Ausgezeichnete Verarbeitbarkeit und …
PEEK5600CF30
Hochfest und hoher Modul, geeignet für …
PEEK5600LF30
Kohlefaserverstärkte Einblicke mit …
PEEK5600GF30
Mit ausgezeichneter Verschleißfestigkeit…
PEEK Sheet Application Industries
Aerospace
Food
Mechanics
Medicine
Oil and gas
Semiconductors
PEEK Sheet Typical Data
| PEEK5600G | PEEK5600CF30 | PEEK5600GF30 | PEEK5600LF30 | |||
|---|---|---|---|---|---|---|
| Item | Standard | Units | Data | Data | Data | Data |
| Color | – | – | Natural | Black | Natural | Black |
| Density | ISO 1138 | g/cm3 | 1,3 ± 0,01 | 1,4±0,03 | 1,5±0,01 | 1,44±0,05 |
| Water Absorption (25℃.24Hrs) | ISO 62 | – | 0,05% | 0,05% | 0,05% | 0,05% |
| Melting temperature | ISO 11357 | ℃ | 343 | 343 | 343 | 343 |
| Distortion Temperature | ISO 75-1/-2 | ℃ | 260 | 315 | 315 | 315 |
| Continuous service Temperature | UL 74685 | ℃ | 260 | 260 | 260 | 260 |
| Thermal expansion coefficient | ASTM D696 | /K | 4,7*10-6 | 1,5*10-6 | 2,2*10-6 | 2,4*10-6 |
| Tensile Strength (23 ℃) | ISO 527 | Mpa | 100 | 125 | 110 | 70 |
| Tensile modulus (23 ℃) | ISO 527 | Gpa | 3,8 | 9,3 | 7,9 | 4 |
| Tensile Elongation (23 ℃) | ISO 527 | – | 27% | 2,50% | 3,50% | 2,50% |
| Bending Strength (23 ℃) | ISO 178 | Mpa | 163 | 271 | 214 | 100 |
| Bending Modulus (23 ℃) | ISO 178 | Gpa | 3,5 | 9,1 | 7,5 | 4 |
| Impact Strength (23 ℃) | ISO 604 | Mpa | 123 | 196 | 142 | 135 |
| Lzod Impact Strength (No notched) | ISO 180/u | KJ/m² | No Break | 38 | 41 | 26 |
| Poisson Ratio | ISO 527-2 | – | 0,4 | 0,35 | 0,35 | 0,35 |
| Rockwell Hardness | GB3398.2 | – | 118 | 123 | 122 | 120 |
| Flammability | UL 94 (1,5 mm) | – | V-0 | V-0 | V-0 | V-0 |
| Dielectric strength | IEC 60243-1 | KV/mm | 18 | – | 17 | – |
| Dielectric constant | IEC 60250 | – | 3,2 | – | 3,4 | – |
| Thermal Conductivity | ISO 22007 | W/（m · k） | 0,28 | 0,95 | 0,31 | 0,86 |
| Surface Resistance | IEC 90093 | Ω | 10^15 | 10^5 | 10^15 | 10^5 |
PEEK Sheet Stock Program
| Thickness (mm) | Thickness Tolerance | Fromat | PEEK5600G Weight per 1000mm（kg） |
|---|---|---|---|
| 1 | -0 ，+0,1 | 650*1000/3000 | 0,96 |
| 2 | -0 ，+0,2 | 650*1000/3000 | 1,83 |
| 3 | -0 ，+0,2 | 650*1000/3000 | 2,78 |
| 4 | -0 ，+0,3 | 650*1000/3000 | 3,74 |
| 5 | -0 ，+0,8 | 1250*1000/3000 | 8,8 |
| 6 | -0 ，+0,8 | 1250*1000/3000 | 11,28 |
| 8 | -0 ，+0,8 | 1250*1000/3000 | 14,3 |
| 10 | -0 ，+1 | 1250*1000/3000 | 17,9 |
| 12 | -0 ，+1 | 1250*1000/3000 | 21,4 |
| 15 | -0 ，+1 | 1250*1000/3000 | 26,28 |
| 16 | -0 ，+1 | 1250*1000/3000 | 28,3 |
| 18 | -0 ，+1 | 1250*1000/3000 | 31,34 |
| 20 | -0 ，+1,2 | 1250*1000/3000 | 35,3 |
| 22 | -0 ，+1,2 | 1250*1000/3000 | 38,4 |
| 25 | -0 ，+1,2 | 1250*1000/3000 | 43,8 |
| 28 | -0 ，+1,2 | 1250*1000/3000 | 48,5 |
| 30 | -0 ，+1,5 | 1250*1000/3000 | 52,3 |
| 35 | -0 ，+1,5 | 1250*1000/3000 | 60,65 |
| 40 | -0 ，+2 | 1250*1000/3000 | 69,3 |
| 45 | -0 ，+2 | 1250*1000/3000 | 78,35 |
| 50 | -0 ，+3 | 1250*1000/3000 | 87,6 |
| 55 | -0 ，+3 | 1250*1000/3000 | 96,1 |
| 60 | -0 ，+3 | 1250*1000/3000 | 104,4 |
| 70 | -0 ，+3 | 1250*1000/3000 | 121,3 |
| 80 | -0 ，+3 | 1250*1000/3000 | 138,9 |
| 90 | -0 ，+3 | 1250*1000/3000 | 155,8 |
| 100 | -0 ，+4 | 1250*1000/3000 | 174,4 |
