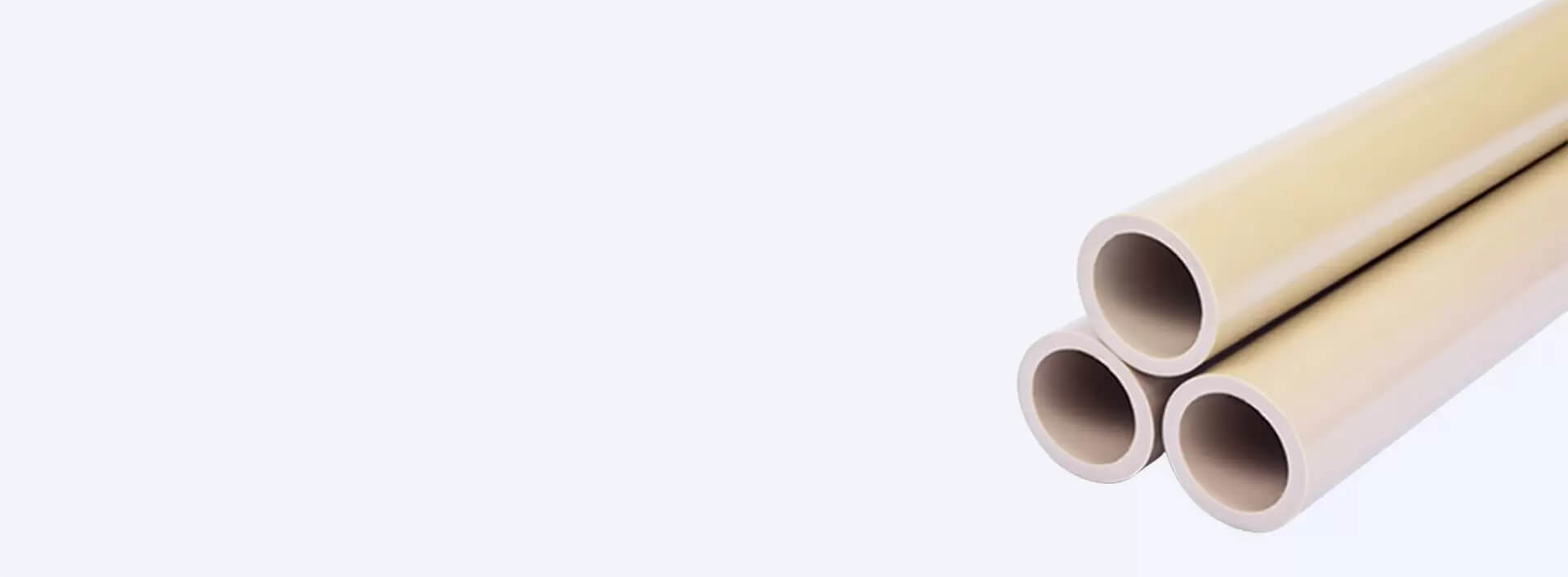

PEEK TUBE
Among all the round PEEK finished part widely used in different industries, nearly half are hollow,
which makes PEEK tube a much favorable choice compared with rod especially in the oil and gas, or
semiconductor industry.
PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers
excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion
and dynamic fatigue. Its ability to run at high continuous temperatures up to (250º C) without
permanent property degradation along with stable electrical properties makes PEEK an excellent
alternative to fluoropolymers in aggressive environments. PEEK has also been shown to exhibit very
low smoke and toxic gas emission when exposed to flame.
Among all the round PEEK finished part widely used in different industries, nearly half are hollow,
which makes PEEK tube a much favorable choice compared with rod especially in the oil and gas, or
semiconductor industry.
JUNDE specializes in various processing methods to achieve the capability of producing PEEK tubes
and rings for a wide range of dimensions. we produce PEEK tubes and rings through extrusion,
compression molding, and injection molding. All processes offer a wide range of sizes that can be
tailored to the customer’s needs.
With totally over 300 sizes，JUNDE can offer PEEK tube with OD range from 10mm to 1200mm，and we
keep ready stock of the over 200 sizes most commonly used PEEK tubes to ensure the fast delivery
to our customers around the world.
We will be in a very short time to give you a satisfactory answer.
Certificate & Compliance
Main Advantages of PEEK Tube
-
Good wearing performance with or without load -
High service temperature (long term 260℃) -
Good mechanical strength -
Good chemical resistance & Hydrosis resistance -
FDA approved
PEEK5600G
Excellent machinability and …
PEEK5600CF30
High strength and high modulus, suitable for …
PEEK5600LF30
Carbon fiber reinforced insights with …
PEEK5600GF30
With excellent wear resistance…
PEEK Tube Application Industries
Aerospace
Food
Mechanics
Medicine
Oil and gas
Semiconductors
PEEK Tube Typical Data
| PEEK5600G | PEEK5600CF30 | PEEK5600GF30 | PEEK5600LF30 | |||
|---|---|---|---|---|---|---|
| Item | Standard | Units | Data | Data | Data | Data |
| Color | – | – | Natural | Black | Natural | Black |
| Density | ISO 1138 | g/cm3 | 1,3 ± 0,01 | 1,4±0,03 | 1,5±0,01 | 1,44±0,05 |
PEEK Tube Stock Program
| OD(mm) | ID(mm) | Standard Length(mm) |
|---|---|---|
| 21 | 14 | 1000/3000 |
| 23 | 13 | 1000/3000 |
| 24 | 17 | 1000/3000 |
