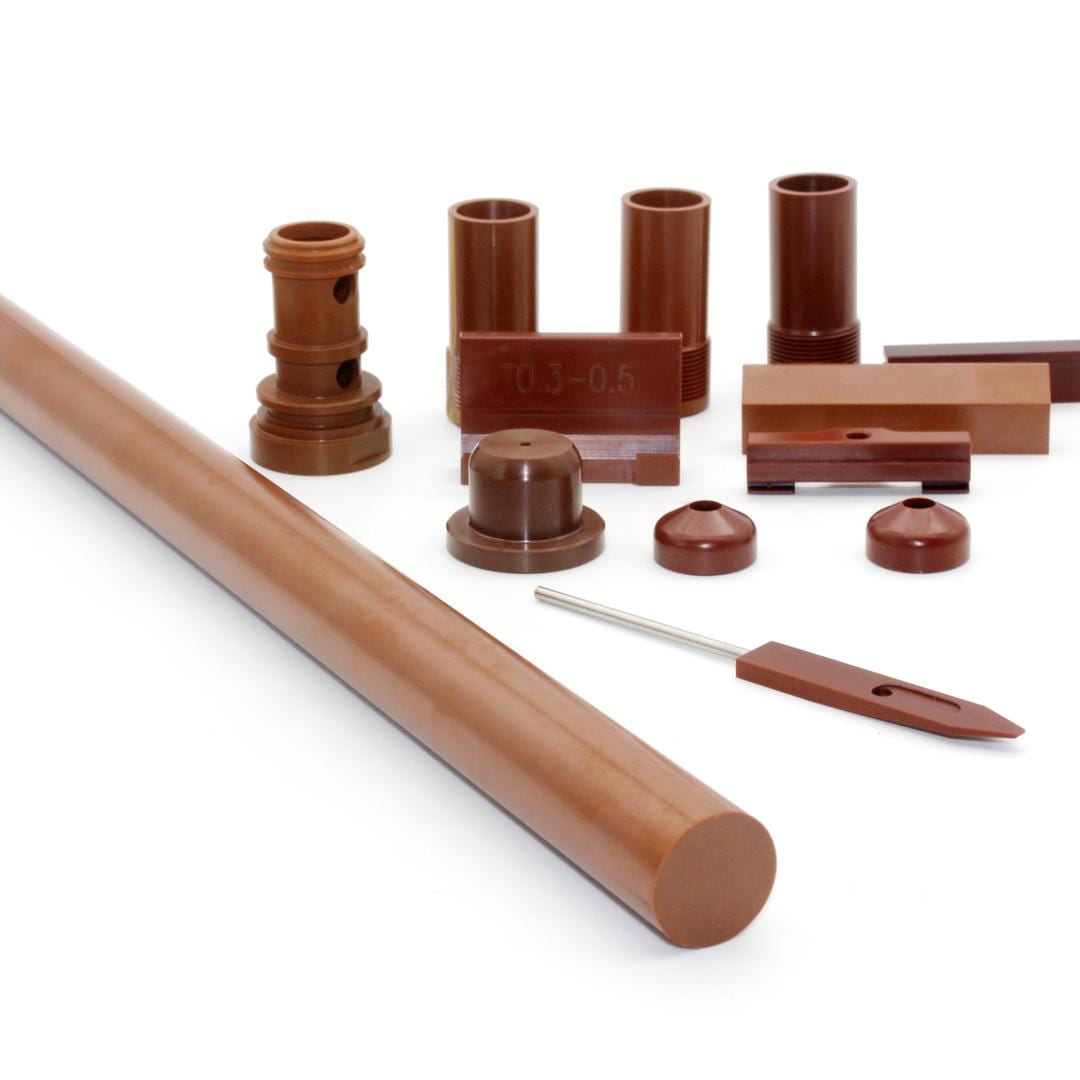

PI Product 1
PI Product 2
PI Product 3
PI Product 4

Now widely used in automotive, semiconductor, office equipment,
electrical and electronic equipment, scientific instruments, hot runners, petrochemical equipment, general
machinery, textile machinery, laser printing, medical equipment and other fields.

What is PI?

TWith high temperature resistance level, the long-term use
temperature is up to 350℃, and the instantaneous temperature reaches 400℃. Because of good processing
characteristics, it can be processed into bars or other special-shaped parts.

PI Description
Do you want more help?

Feature advantages

1
High temperature resistance
2
Wear resistance
3
Anti-deformation
4
Electrical insulation
5
Chemical resistance, grease resistance, oil and solvent
6
Plasma, radiation
7
Ultra low deflation in vacuum
8
Excellent machinability

Application field

Now widely used in automotive, semiconductor, office equipment, electrical
and electronic equipment, scientific instruments, hot runners, petrochemical equipment, general machinery, textile
machinery, laser printing, medical equipment and other fields.

◆ Mould hot runner insulation board, insulation ring
◆ Chip test box
◆ Laser embossing roller
◆ Semiconductor industry fixture
◆ Rolling, sliding, thrust washer
◆ Gear
◆ Glass industry bracket
◆ Piston ring
◆ Copier separation claw
◆ Semiconductor chip nozzle
◆ Gas Chromatography Seal
◆ Valve
◆ Plasma torch vortex ring
◆ Car engine gasket
◆ Microwave parts
Do you want more help?

PI Data sheet

Test items Density Tensile Strength Elongation at break Bending strength Compressive strength Impact strength Heat distortion
temperature		 long-time use
temperature
Dielectric constant ISO 1183 ISO 527 ISO 527 ISO 178 ISO 604 ISO 179 ISO 75 – f –
Unit g/C㎡ MPa % MPa MPa kJ/㎡ ℃ ℃
JHPI-10 1.40 96 10 148 152 90 >300 350
JHPI-10-21 1.43 90 5 126 135 55 >300 350
JHPI-10-22 1.6 60 2.5 90 95 13 ＞300 350
JHPI-20 1.38 132 6 184 519 40 340（1.8MPa)
377(0.45MPa)		 ＞300
JHPI-30 1.40 92 8 140 150 88 >320 330
JHPI-HT 1.40 92 8 140 150 88 >320 380
JHPI-YS 1.36 121 13 171 175 145
（No Break）		 255 250
JSJHTPI-01 1.32 90 8 130 140 100 230 250
JSJHTPI-02 1.36 97 8 138 148 130
（No Break）		 250 250

PI Sheet Specification Table

Seriennummer Größe(W×L) Größe(T) Seriennummer Größe(W×L) Größe(T)
1 320 × 325 4 18 290 × 440 4
2 320 × 325 5 19 290 × 440 5
3 320 × 325 6 20 290 × 440 6
4 320 × 325 8 21 290 × 440 8
5 320 × 325 10 22 290 × 440 10
6 320 × 325 12 23 290 × 440 12
7 320 × 325 14 24 290 × 440 14
8 320 × 325 16 25 290 × 440 16
9 320 × 325 18 26 290 × 440 18
10 320 × 325 20 27 290 × 440 20
11 320 × 325 22 28 290 × 440 22
12 320 × 325 24 29 290 × 440 24
13 320 × 325 26 30 290 × 440 26
14 320 × 325 28 31 290 × 440 28
15 320 × 325 30 32 290 × 440 30
16 320 × 325 32 33 290 × 440 32
17 320 × 325 34 34 290 × 440 34

PI Data Overview


JHPI-10

JHPI-10

TWith high temperature resistance level, the long-term use
temperature is up to 350℃, and the instantaneous temperature reaches 400℃.Because of good processing
characteristics, it can be processed into bars or other special-shaped parts.


JHPI-10-21

JHPI-10-21

The long-term use temperature is 350℃, and the instantaneous
temperature is above 400℃, added 15% of the Graphite, leading to a low coefficient of friction and better
wear resistance.


JHPI-YS

JHPI-YS

A semi-thermoplastic polyimide material can be used up to 250 ℃
for a long time, and it has high dimensional stability and transparency.


JSJHTPI-01

JSJHTPI-01

Except Long-term use temperature of 250℃ and excellent processing
performance, it can be processed by injection molding or extrusion Production of various parts or
profiles.
