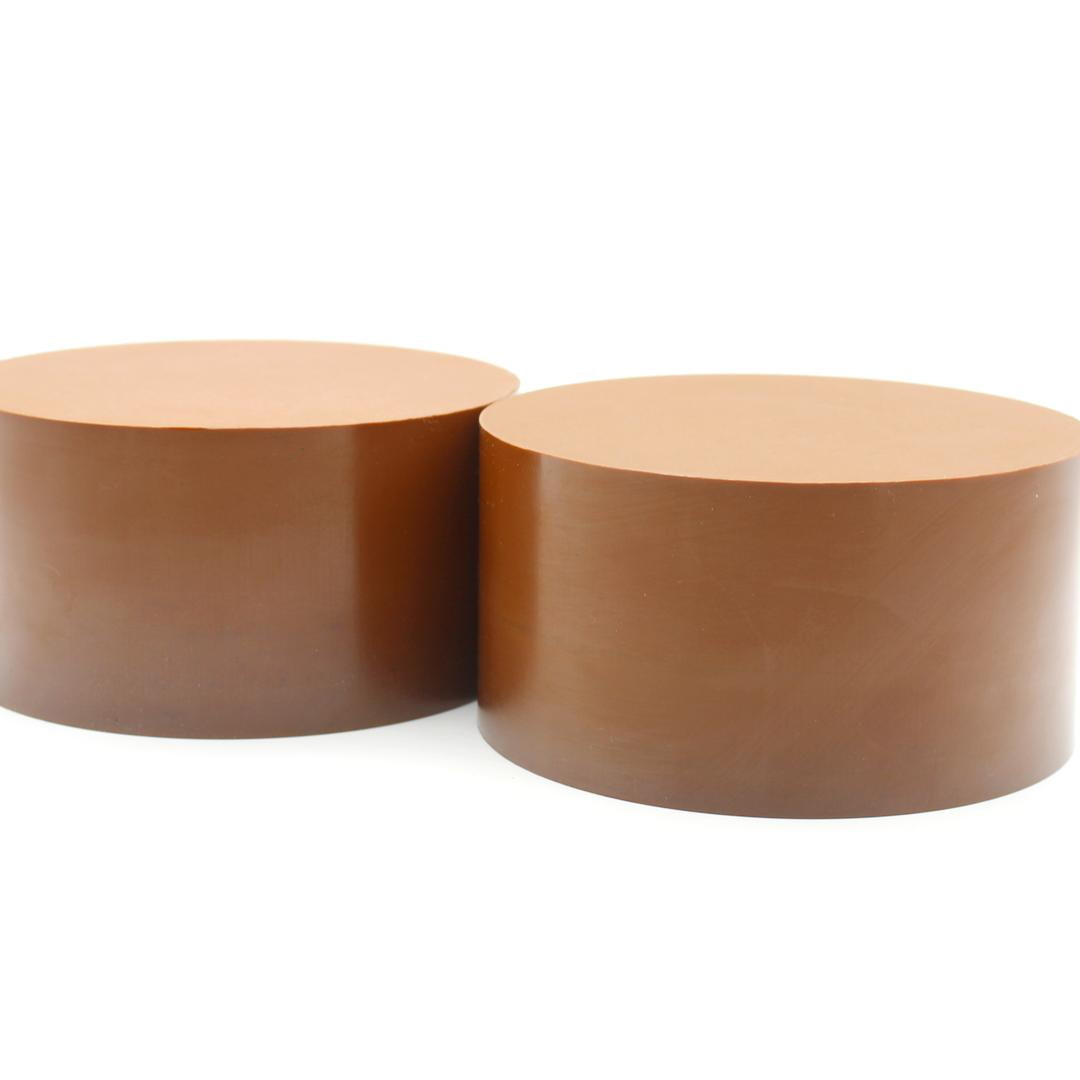

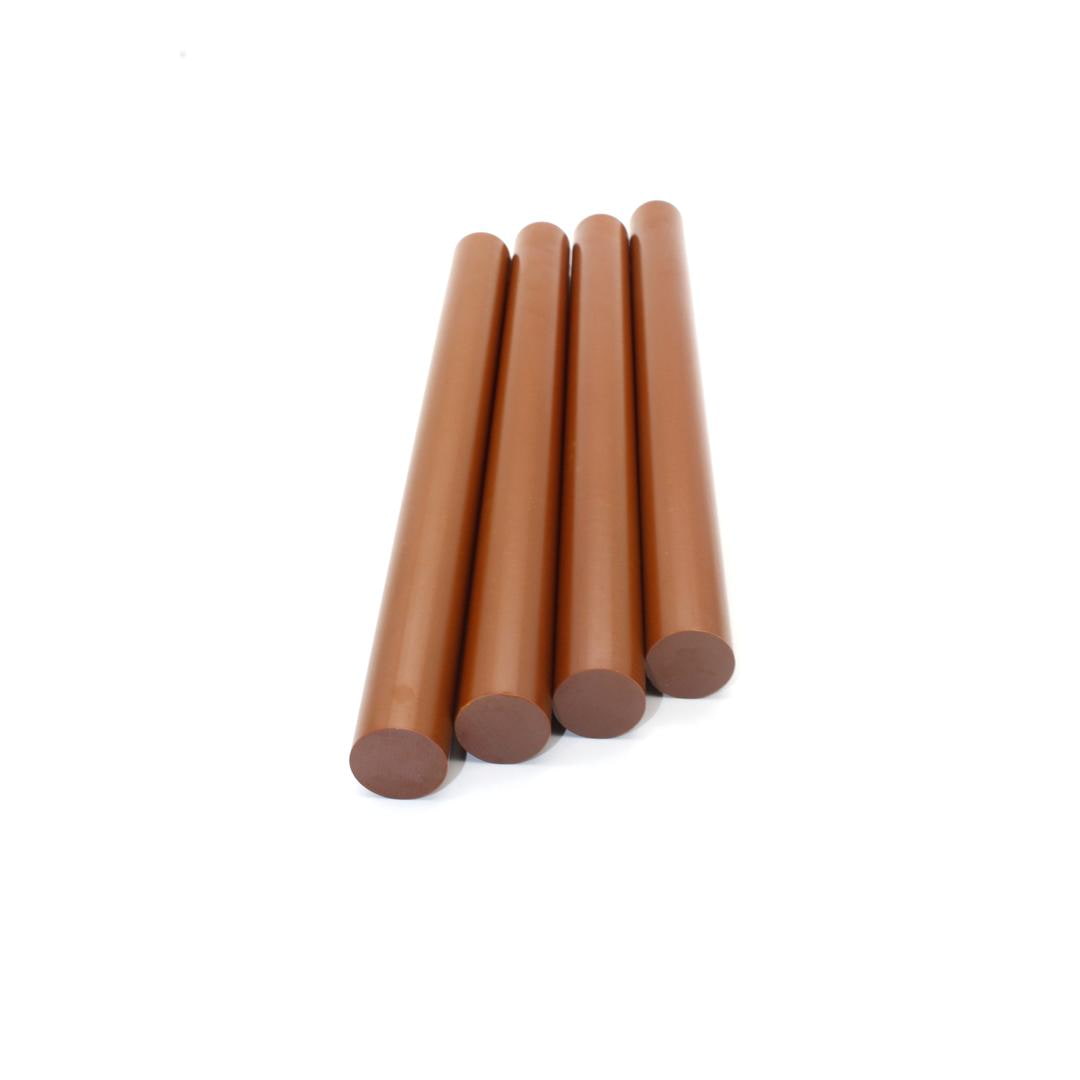

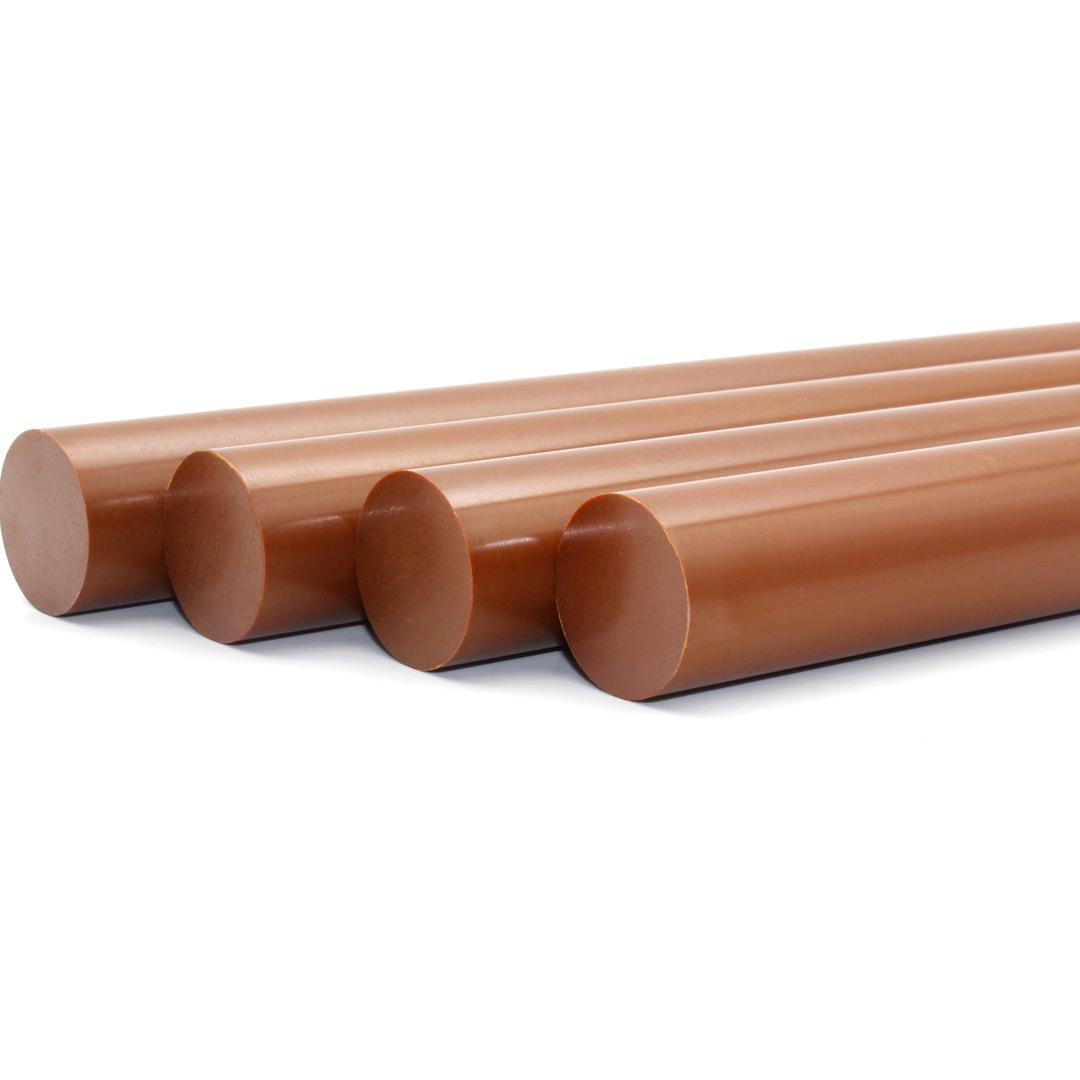

PI Rod
Now widely used in automotive, semiconductor, office
equipment,
electrical and electronic equipment, scientific instruments,
hot runners, petrochemical equipment, general machinery,
textile machinery, laser printing, medical equipment and other fields.
What is PI?

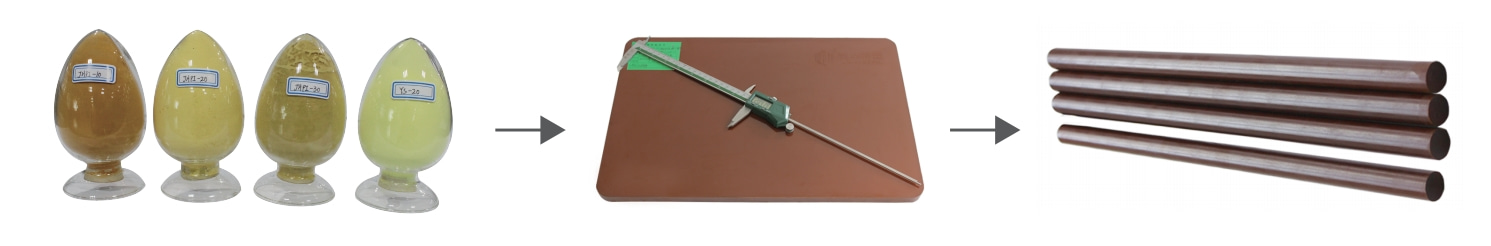

With high temperature resistance level, the long-term use temperature is up to 350℃, and the instantaneous
temperature reaches 400℃. Because of good processing characteristics, it can be processed into bars or other
special-shaped parts.
Feature advantages
1
High temperature resistance
2
Wear resistance
3
Anti-deformation
4
Electrical insulation
5
Chemical resistance, grease resistance, oil and solvent
6
Plasma, radiation
7
Ultra low deflation in vacuum
8
Excellent machinability
Application field
Now widely used in automotive, semiconductor, office equipment, electrical and electronic equipment, scientific
instruments, hot runners, petrochemical equipment, general machinery, textile machinery, laser printing, medical
equipment and other fields.
Mould hot runner insulation board, insulation ring
Chip test box
Laser embossing roller
Semiconductor industry fixture
Rolling, sliding, thrust washer
Gear
Glass industry bracket
Piston ring
Copier separation claw
Semiconductor chip nozzle
Gas Chromatography Seal
Valve
Plasma torch vortex ring
Car engine gasket
Microwave parts
PI Data sheet
| Test items | Density | Tensile Strength | Elongation at break | Bending strength | Compressive strength | Impact strength | Heat distortion temperature |
long-time use temperature |
|---|---|---|---|---|---|---|---|---|
| Dielectric constant | ISO 1183 | ISO 527 | ISO 527 | ISO 178 | ISO 604 | ISO 179 | ISO 75 – f | – |
| Unit | g/C㎡ | MPa | % | MPa | MPa | kJ/㎡ | ℃ | ℃ |
| JHPI-10 | 1.40 | 96 | 10 | 148 | 152 | 90 | >300 | 350 |
| JHPI-10-21 | 1.43 | 90 | 5 | 126 | 135 | 55 | >300 | 350 |
| JHPI-10-22 | 1.6 | 60 | 2.5 | 90 | 95 | 13 | ＞300 | 350 |
| JHPI-20 | 1.38 | 132 | 6 | 184 | 519 | 40 | 340（1.8MPa) 377(0.45MPa) |
＞300 |
| JHPI-30 | 1.40 | 92 | 8 | 140 | 150 | 88 | >320 | 330 |
| JHPI-HT | 1.40 | 92 | 8 | 140 | 150 | 88 | >320 | 380 |
| JHPI-YS | 1.36 | 121 | 13 | 171 | 175 | 145 （No Break） |
255 | 250 |
| JSJHTPI-01 | 1.32 | 90 | 8 | 130 | 140 | 100 | 230 | 250 |
| JSJHTPI-02 | 1.36 | 97 | 8 | 138 | 148 | 130 （No Break） |
250 | 250 |
