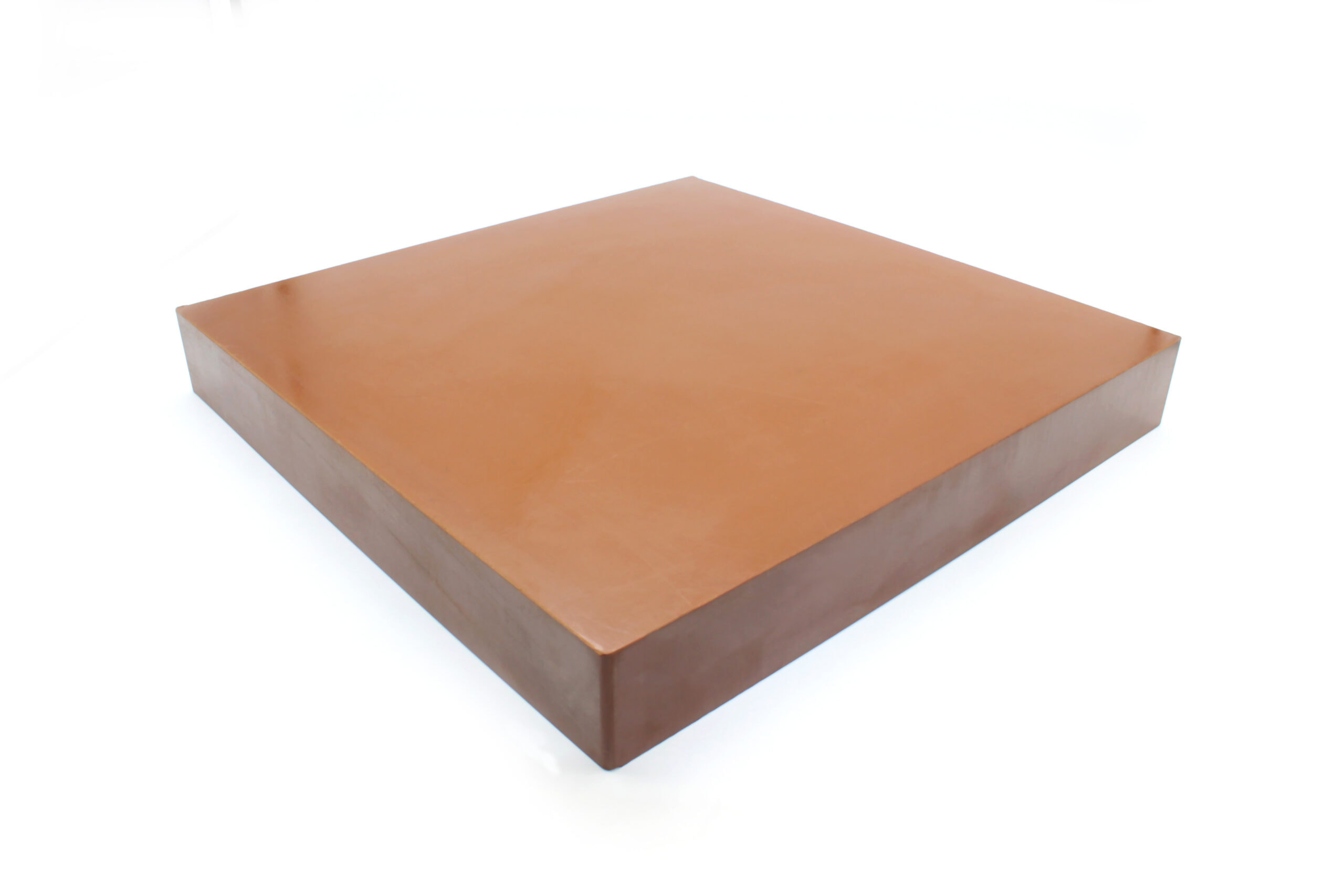

PI Sheet
Now widely used in automotive, semiconductor, office equipment,
electrical and electronic equipment, scientific instruments, hot
runners, petrochemical equipment, general machinery, textile
machinery, laser printing, medical equipment and other fields.
What is PI?
With high temperature resistance level, the long-term use temperature
is up to 350℃, and the instantaneous temperature reaches 400℃. Because
of good processing characteristics, it can be processed into bars or
other special-shaped parts.
Feature Advantages
High temperature resistance
Wear resistance
Anti-deformation
Electrical insulation
Chemical resistance, grease resistance, oil and solvent
Plasma, radiation
Ultra low deflation in vacuum
Excellent machinability
Application field
Now widely used in automotive, semiconductor, office equipment,
electrical and electronic equipment, scientific instruments, hot
runners, petrochemical equipment, general machinery, textile
machinery, laser printing, medical equipment and other fields.
PI Data sheet
| Test items | Density | Tensile Strength | Elongation at break | Bending strength | Compressive strength | Impact strength | Heat distortion temperature | long-time use temperature |
|---|---|---|---|---|---|---|---|---|
| Dielectric constant | ISO 1183 | ISO 527 | ISO 527 | ISO 178 | ISO 604 | ISO 179 | ISO 75 – f | – |
| Unit | g/C㎡ | MPa | % | MPa | MPa | kJ/㎡ | ℃ | ℃ |
| JHPI-10 | 1.40 | 96 | 10 | 148 | 152 | 90 | >300 | 350 |
| JHPI-10-21 | 1.43 | 90 | 5 | 126 | 135 | 55 | >300 | 350 |
| JHPI-10-22 | 1.6 | 60 | 2.5 | 90 | 95 | 13 | ＞300 | 350 |
| JHPI-20 | 1.38 | 132 | 6 | 184 | 519 | 40 | 340（1.8MPa) 377(0.45MPa) |
＞300 |
| JHPI-30 | 1.40 | 92 | 8 | 140 | 150 | 88 | >320 | 330 |
| JHPI-HT | 1.40 | 92 | 8 | 140 | 150 | 88 | >320 | 380 |
| JHPI-YS | 1.36 | 121 | 13 | 171 | 175 | 145 （No Break） |
255 | 250 |
| JSJHTPI-01 | 1.32 | 90 | 8 | 130 | 140 | 100 | 230 | 250 |
| JSJHTPI-02 | 1.36 | 97 | 8 | 138 | 148 | 130 （No Break） |
250 | 250 |
PI Sheet Specification Table
| Seriennummer | Größe(W×L) | Größe(T) | Seriennummer | Größe(W×L) | Größe(T) |
|---|---|---|---|---|---|
| 1 | 320 × 325 | 4 | 18 | 290 × 440 | 4 |
| 2 | 320 × 325 | 5 | 19 | 290 × 440 | 5 |
| 3 | 320 × 325 | 6 | 20 | 290 × 440 | 6 |
| 4 | 320 × 325 | 8 | 21 | 290 × 440 | 8 |
| 5 | 320 × 325 | 10 | 22 | 290 × 440 | 10 |
| 6 | 320 × 325 | 12 | 23 | 290 × 440 | 12 |
| 7 | 320 × 325 | 14 | 24 | 290 × 440 | 14 |
| 8 | 320 × 325 | 16 | 25 | 290 × 440 | 16 |
| 9 | 320 × 325 | 18 | 26 | 290 × 440 | 18 |
| 10 | 320 × 325 | 20 | 27 | 290 × 440 | 20 |
| 11 | 320 × 325 | 22 | 28 | 290 × 440 | 22 |
| 12 | 320 × 325 | 24 | 29 | 290 × 440 | 24 |
| 13 | 320 × 325 | 26 | 30 | 290 × 440 | 26 |
| 14 | 320 × 325 | 28 | 31 | 290 × 440 | 28 |
| 15 | 320 × 325 | 30 | 32 | 290 × 440 | 30 |
| 16 | 320 × 325 | 32 | 33 | 290 × 440 | 32 |
| 17 | 320 × 325 | 34 | 34 | 290 × 440 | 34 |
PI Data Overview
JHPI-10
TWith high temperature resistance level, the long-term use temperature is up to 350℃, and the instantaneous temperature reaches 400℃.Because of good processing characteristics, it can be processed into bars or other special-shaped parts.
JHPI-10-21
The long-term use temperature is 350℃, and the instantaneous temperature is above 400℃, added 15% of the Graphite, leading to a low coefficient of friction and better wear resistance.

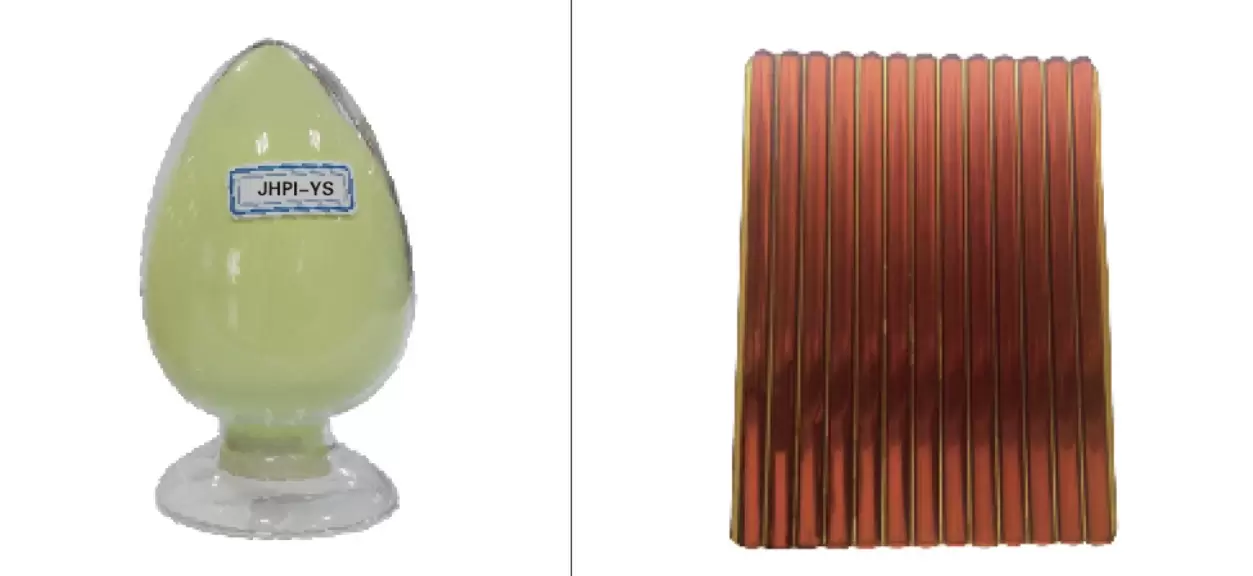

JHPI-YS
A semi-thermoplastic polyimide material can be used up to 250 ℃ for a long time, and it has high dimensional stability and transparency.

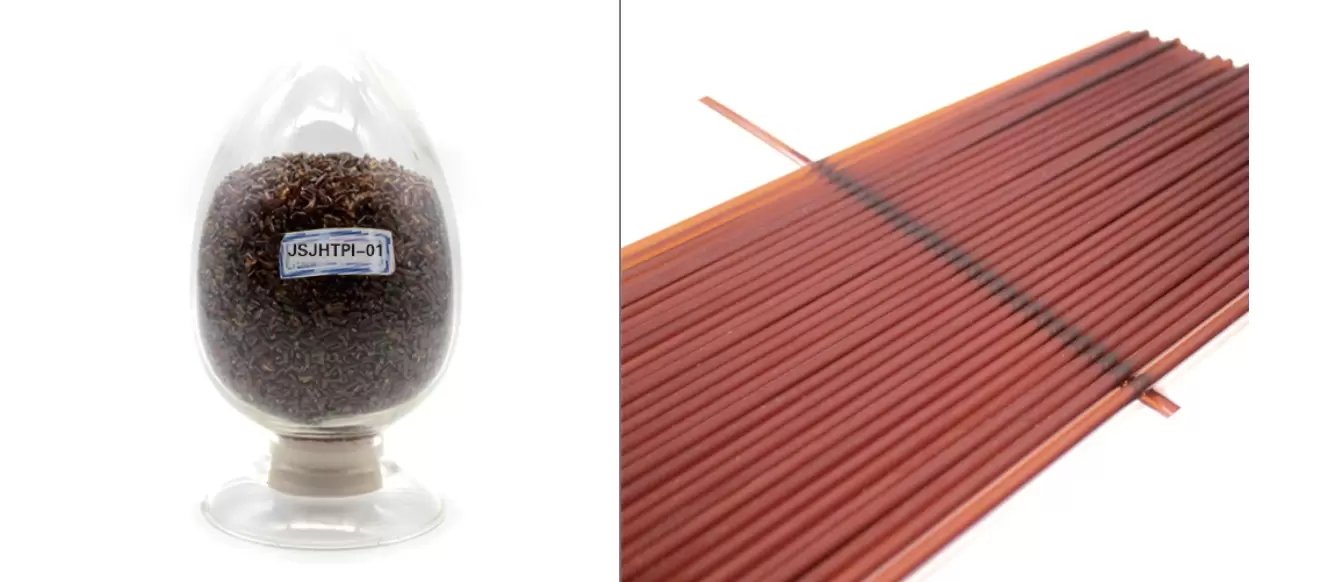

JSJHTPI-01
Except Long-term use temperature of 250℃ and excellent processing performance, it can be processed by injection molding or extrusion Production of various parts or profiles.
