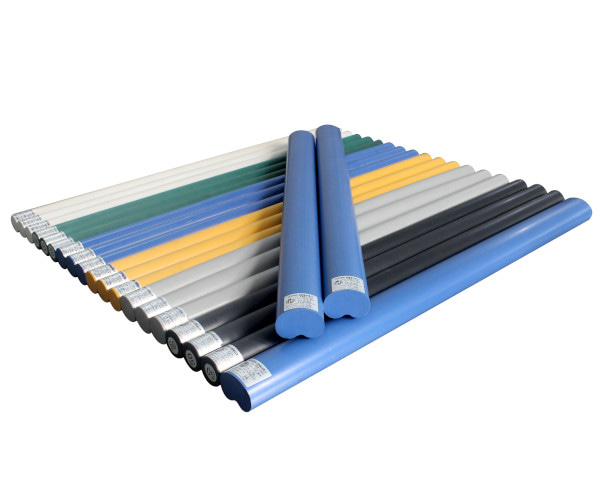

PPSU Rod

PPSU Rod

PPSU is kind of amorphous, high-performance thermoplastic plastic. Compared with PSU and PEI, PPSU has better impact resistance and chemical resistance.
Through high pressure steam sterilizing test, PPSU is proved to have the best hydrolysis resistant better than other amorphous plastic. In fact, PPSU can stand million times of high pressure steam sterilizing, which makes PPSU a very good choice for medical application.

What is PPSU?

Through high pressure steam sterilizing test, PPSU is proved to have the best hydrolysis resistant better than other amorphous plastic. In fact, PPSU can stand million times of high pressure steam sterilizing, which makes PPSU a very good choice for medical application.

Do you want more help?

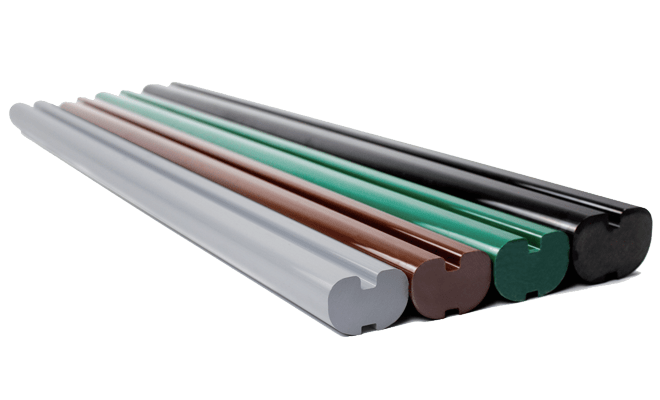

PPSU Information

PPSU Key Advantages

  • ◆
    High temperature resistance
  • ◆
    High hardness
  • ◆
    Good chemical compatibility
  • ◆
    Good impact resistance
  • ◆
    Good dimension stability
  • ◆
    Good electricity insulation
  • ◆
    Good hydrolysis resistance
  • ◆
    Excellent resistance to high energy radiation (γ Ray and X Ray)
  • ◆
    Good dielectric properties

Do you want more help?

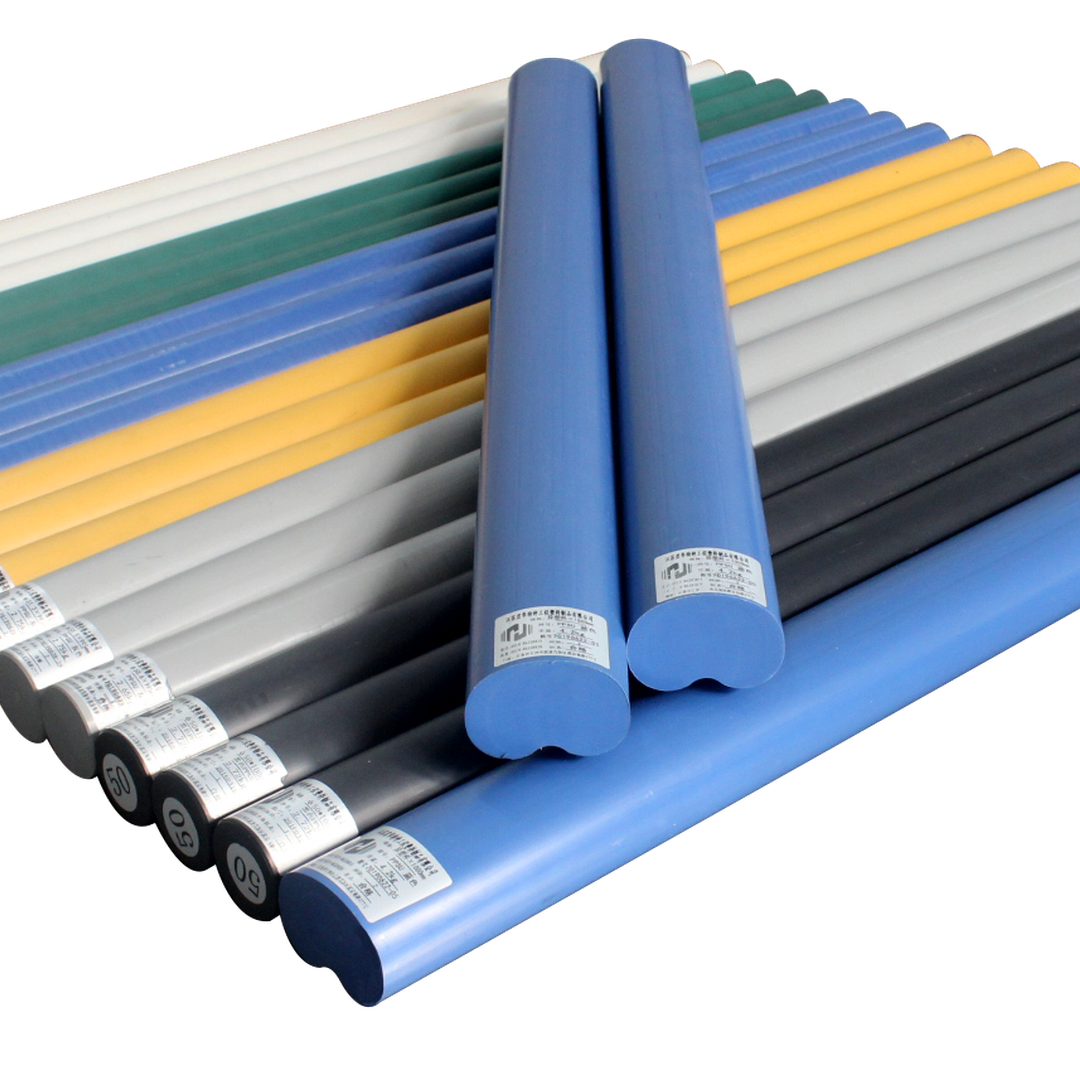

PPSU Advantages

PPSU Data sheet

Technical Properties

Typical values for uncolored product at 23℃ Testing method Unit Data
Mechanical Properties
Tensile Strength ISO 527-1/-2 MPa 70
Tensile Modulus ISO 527-1/-2 MPa 2270
Tensile Elongation(Yield) ISO 527-1/-2 % 7.8
Flexural Strength ISO 178 MPa 105
Flexural Modulus ISO 178 MPa 2400
Notched Izod Impact ISO 180/A KJ/㎡ 68
Thermal Properties
HDT/A @1.8MPa Heat Deflection Temperature ISO 75-1/-2 ℃ 196
DSC，10℃/min Glass Transition Temperature ISO 11357-1/-2 ℃ 220
@23℃，CLTE-Flow ISO11359-1/-2 E-6/K 55
Flammability
1.5mm Flame Rating@1.5mm thickness UL94 Class V-0
Electrical Properties
100V Volume Resistivity IEC 60093 Ω·m ＞1E13
100V Surface Resistivity IEC 60093 Ω ＞1E15
Dielectric Constant
@100HZ
@1MHZ		 IEC 60250 3.8
3.7
Dissipation factor
@100HZ
@1MHZ		 IEC 60250 E-4 15
86
K20/K20, (60*60*1 mm³)Dielectric Strength IEC 60243-1 KV/mm 44
CTI IEC 60112 150
General Properties and Processability
Density ISO1183 g/c㎡ 1.29
Moisture Absorption, Equilibrium 23℃/50% r.h ISO62 % 0.6
Mold shrinkage(Flow) ISO 2577, 294-4 % 0.9
Mold shrinkage (Vertical) ISO 2577, 294-4 % 1
MFR @365℃/5kg ISO 1133 g/10min 28-38
Processing (Melt)Temp, Injection/Extrusion ℃ 350-390
Mold Temp, Injection/Extrusion ℃ 140-180

PPSU Rod Specification Table

Serial number (mm) Serial number (mm) Serial number (mm) Serial number (mm)
1 5 13 25 25 48 37 95
2 6 14 26 26 50 38 96.5
3 8 15 26.7 27 53 39 100
4 10
