PEEK monofilament (fiber)

Medical implant-grade PEEK pure material: has excellent mechanical properties such as stiffness, toughness, and durability, and a modulus close to that of natural cortical bone. It has passed all test requirements of YYT0660-2008 and obtained a third-party verification report.

We will be in a very short time to give you a satisfactory answer.

Do you want more help

01. Junde monofilament (fiber)

As we all know, PEEK is a variety of polyaryletherketone polymers with excellent performance and is a thermoplastic polymer with good comprehensive performance today. PEEK products are very rich in variety, mainly including injection molded finished parts, continuous extrusion plate/rod profiles, films, capillaries and other products.

Junde has developed Junde monofilaments (fibers) of certain sizes according to customer needs. Junde filaments have excellent insulation properties, outstanding strength, and excellent heat and chemical resistance.

02. PEEK monofilament (fiber) performance

Junde (polyetheretherketone) monofilament (fiber) has excellent performance. Tensile strength is 600-700MPa (single filament breaking strength is about 50 cN/tex), elongation is 40%, melting point is 340℃, and gram weight is 430 g/10000 m (φ0.2 mm).

03. Application fields of PEEK monofilament (fiber)

Junde monofilament (fiber) has the characteristics of steam resistance, wear resistance, creep resistance, good toughness and good biocompatibility. It is widely used in drying canvas for papermaking machinery, heat-resistant filter cloth, racket mesh, composite materials (mixed or mixed with CF, GF, etc.), fuel filter, artificial ligament, high-temperature insulation sheath on aircraft, etc.

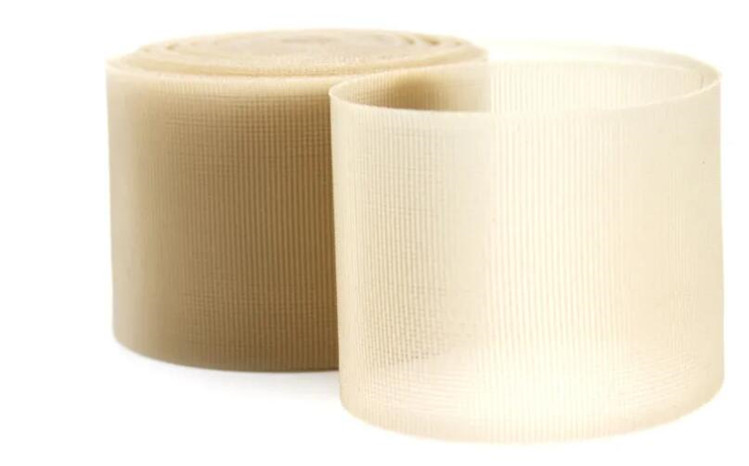

▲ PEEK woven filter cloth

Physical Properties

Category	Item	Unit	Standard Value (Φ0.2)	Standard Value (Φ0.25)
Basic Index	Outer Diameter	mm	Φ0.2	Φ0.25
	Fineness (g/1000m)	(D)	430	630
	Heat Shrinkage (200℃)	%	3.7	3.7
Mechanical Properties	Breaking Load	N	15.5	21.5
	Breaking Elongation	%	29	25
	Breaking Strength	cN/tex	23	33
Thermal Properties	Melting Point	℃	343	343
Thermal Properties	Flame Retardancy	UL94	V-0	V-0
Other Properties	Mildew Resistance (GJB150-10A)	/	≥ Grade 1
Other Properties	Salt Spray Resistance (GJB15, 11A, pH=3.5)	/	Color remains stable, mechanical properties unaffected

Size Table

No.	Size (mm)	No.	Size (mm)
1	0.035	6	0.25
2	0.05	7	0.5
3	0.08	8	1.0
4	0.1	9	1.75
5	0.2	10	1.95
